Mastering Android Jetpack: Clean Architecture, Directory Structure, and Best Practices for Jetpack Compose Applications

The communication between these layers follows the dependency rule, which states that dependencies should flow from the outer layers toward the inner layers. This allows for easier testing, maintainability, and flexibility.

👉 Building Flexible and Scalable Android Apps with MVVM: Best Practices and Tips

Adopting Clean Architecture principles in Android development offers several benefits:

• Modularity: Clean Architecture promotes modularity by separating the application into distinct layers, making it easier to develop and maintain individual components.

• Testability: The separation of concerns in Clean Architecture enables easy unit testing of each layer independently, resulting in more reliable and robust tests.

• Maintainability: With a clear separation of responsibilities, it becomes easier to modify or replace specific components without affecting the entire application.

• Scalability: Clean Architecture provides a flexible structure that accommodates future growth and changes in requirements.

• Code Reusability: By keeping business logic separate from UI and external dependencies, the core functionality of the application can be reused across different platforms or interfaces.

When developing an Android application with Jetpack Compose, organizing the project structure becomes essential for maintaining a clean and scalable codebase. A well-structured project enhances code readability, modularity, and collaboration. In this section, we will delve into the recommended directory structure for organizing your Android project when using Jetpack Compose.

• The "app" Module

• Layered Architecture Approach

• Resource Directory

• Testing Directories

• Build configuration (App-level build configuration file.)

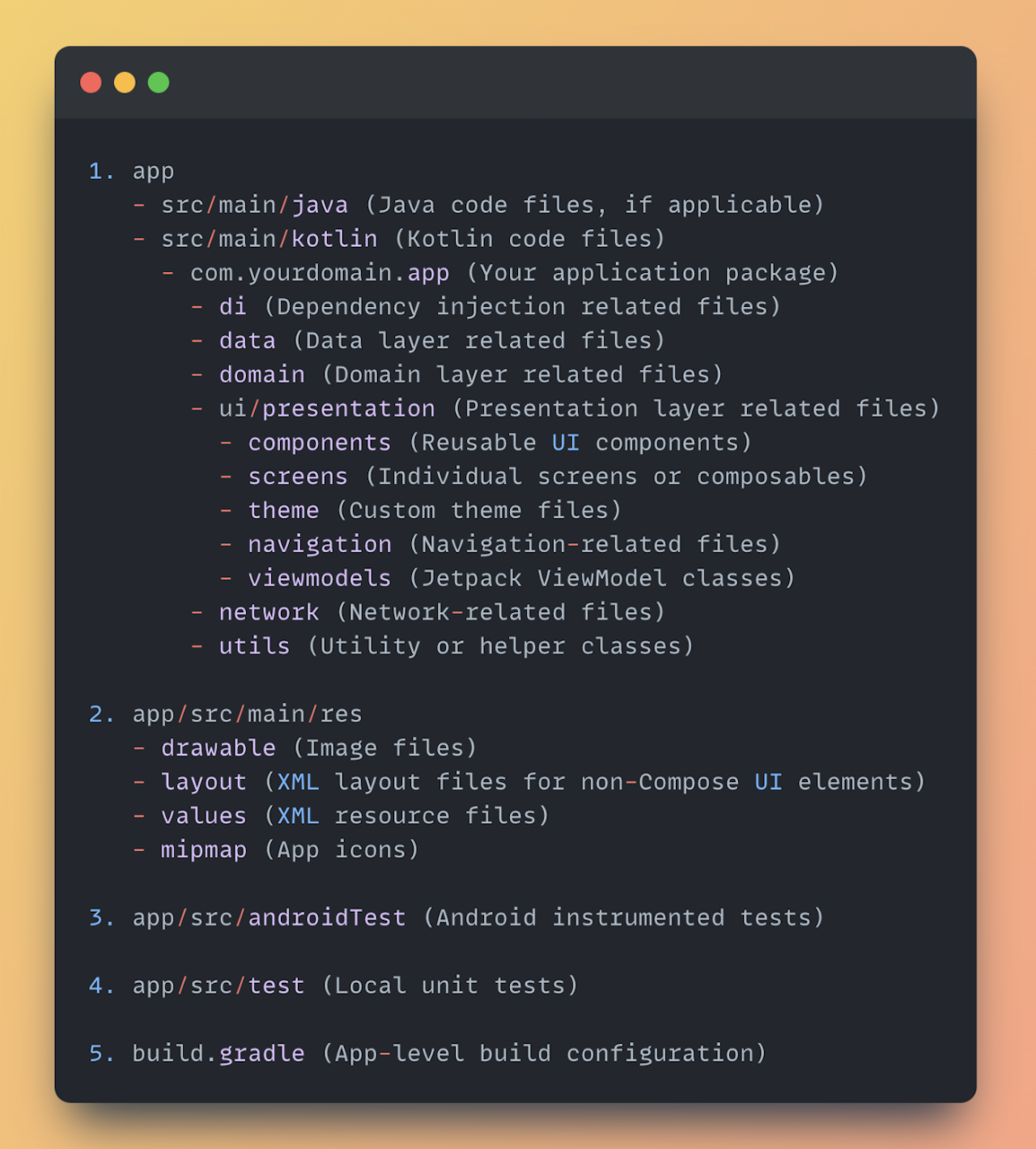

The heart of your Android project is the "app" module. Within this module, you'll find the following directories:

• src/main/java (for Java code files, if applicable)

• src/main/kotlin (for Kotlin code files)

To begin organizing your project, create a package structure that aligns with your application's package name. For instance, if your domain is "com.yourdomain.app," your main package would be named accordingly.

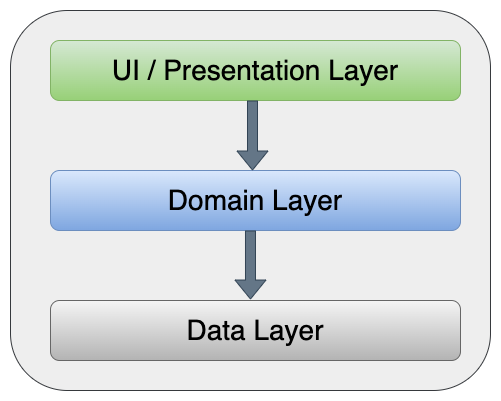

Jetpack Compose complements a layered architecture approach, such as Clean Architecture, which facilitates the separation of concerns and maintains a clear distinction between different parts of the application. Let's examine the recommended directories within your main package:

• di: This directory houses files related to dependency injection, such as Dagger modules or components. These files manage your app's dependencies, promoting modular development and easier testing.

• data: The data layer contains files responsible for data management, such as repositories and data sources. Here, you interact with databases, web services, or local storage. Adhering to the single responsibility principle, this layer handles data operations without being concerned about the UI or business logic.

• domain: The domain layer encapsulates the core business logic of your application. It defines use cases, entities, and business rules. This layer should be independent of any specific frameworks or technologies, enabling it to be easily testable in isolation.

• ui/presentation: The presentation layer encompasses the UI-related files. Within this directory, you can create subdirectories such as:

  • components: This subdirectory is reserved for reusable UI components that can be shared across different screens or composables. It promotes code reuse and consistency in the UI.

  • screens: The screens subdirectory contains individual screens or composables that make up your app's user interface. Each screen represents a specific UI state or interaction and is composed of smaller UI components.

  • theme: This subdirectory holds custom theme files. You can define your app's overall look and feel, including colors, typography, and other visual attributes.

  • navigation: Files related to app navigation can be placed in this subdirectory. It can include navigation graphs, destinations, and navigation-related utilities.

  • viewmodels: Jetpack ViewModel classes are typically placed in this subdirectory. ViewModels manage UI-related data and state, making them accessible to the composables in the presentation layer.

• network: The "network" directory within the main package holds files related to networking and communication with external sources, such as web services or APIs. This includes classes responsible for making network requests, handling responses, parsing data, and any other networking-related logic.

• utils: The utils directory houses utility or helper classes that are used throughout the application. These classes often provide common functionality or convenience methods to simplify development.

The res directory is a standard directory for storing Android app resources. It typically includes the following subdirectories:

• drawable: The drawable subdirectory contains image files used in your app, such as icons, graphics, or other visual assets.

• layout: Although Jetpack Compose promotes a declarative UI approach, you may still require XML layout files for non-Compose UI elements or legacy views.

• values: The values subdirectory contains XML resource files that define values such as colors, strings, dimensions, and styles. It helps maintain consistency and provides a centralized location for managing app resources.

• mipmap: The mipmap subdirectory stores app icons in various sizes. These icons are used for launcher icons, notification icons, and other app-related visuals.

To support testing, you can include the following directories:

• app/src/androidTest: This directory is reserved for Android instrumented tests. You can write tests that interact with your app on a device or emulator.

• app/src/test: Use this directory for local unit tests. Here, you can write tests to verify the behavior of individual units of code, such as functions or classes, in isolation.

State management is a crucial aspect of app development, and Jetpack provides various libraries and tools to assist with state management in Android applications. Here are some popular options for state management in Jetpack:

1. ViewModel and LiveData

ViewModel and LiveData are part of the Jetpack architecture components. ViewModel provides a lifecycle-aware container for holding and managing UI-related data. LiveData is an observable data holder that can be used to propagate changes from the ViewModel to the UI. ViewModel and LiveData together facilitate a reactive approach to state management, ensuring data is updated and observed appropriately across configuration changes.

2. StateFlow and SharedFlow

Introduced as part of Kotlin coroutines, StateFlow and SharedFlow provide a streamlined way of managing state in reactive and asynchronous scenarios. StateFlow is a state holder that emits values to its collectors, allowing for easy observation and propagation of state changes. SharedFlow is a similar concept but more suited for handling events or streams of data. Both StateFlow and SharedFlow integrate well with Jetpack Compose and can be used as an alternative to LiveData.

3. State Hoisting and Local Composition

In Jetpack Compose, you can manage local states within individual composables by using the remember function. This allows you to keep state confined to the composables that require it, promoting encapsulation and reusability. State hoisting is a technique where you lift the state up to a higher-level composable, making it accessible to multiple composables that depend on it. This approach simplifies state management within the composables hierarchy.

Jetpack Compose is a powerful UI toolkit for building native Android applications. To make the most of its capabilities and ensure a smooth development experience, it's essential to follow certain best practices. Here are some recommended best practices for working with Jetpack Compose:

1. Embrace the Declarative Nature

Jetpack Compose is designed around a declarative programming paradigm, where UI components are expressed as functions of their state. Embrace this paradigm by focusing on describing what the UI should look like based on the current state, rather than imperatively modifying the UI. This makes your code more concise, readable, and easier to reason about.

2. Split UI into Small, Reusable Composables

Break down your UI into small, reusable composables. Composables are the building blocks of your UI, representing individual UI elements or small UI components. By creating small and focused composables, you can promote code reusability, maintainability, and easier testing. Think in terms of composing these smaller pieces together to form larger UI screens or components.

3. Use Mutable State Wisely

In Jetpack Compose, the mutable state is managed using the mutableStateOf or remember functions. While mutable state can be convenient, it's important to use it judiciously. Avoid excessive use of mutable state and prefer immutable state when possible. Use mutable state only for the parts of your UI that truly need it, such as user input fields or dynamic UI changes.

4. Separate UI and Logic

Separate your UI code from business logic by following the principles of separation of concerns. Place your business logic, such as data fetching or calculations, in separate functions or classes outside of the composables. This improves code organization, testability, and reusability.

5 Use ViewModel for State Management

To manage complex UI states or handle data interactions, use Jetpack ViewModel in combination with Jetpack Compose. ViewModel provides a lifecycle-aware container for storing and managing UI-related data. It helps preserve UI state across configuration changes and facilitates clean separation between UI and data layers.

6. Leverage Compose Animation APIs

Jetpack Compose offers powerful animation APIs that allow you to create smooth and visually appealing UI animations. Explore and leverage these animation APIs to bring your UI to life, add delightful transitions, and enhance the user experience. Be mindful of performance considerations when working with animations to ensure a smooth and responsive UI.

7. Test Composables with Snapshot Testing

Jetpack Compose makes it easier to write UI tests by providing snapshot testing capabilities. Snapshot testing captures the rendered UI state as an image and compares it against a reference image. This helps verify that your UI components render correctly and detect any unexpected visual changes. Use snapshot testing in combination with unit tests to ensure UI correctness and prevent regressions.

8. Leverage Material Design Components

Jetpack Compose integrates well with Material Design, offering a set of pre-built Material Design components. Leverage these components to maintain a consistent and visually appealing UI that follows Material Design guidelines. Material Design components are customizable and come with built-in theming support.

9. Optimize Performance

While Jetpack Compose provides a highly performant UI framework, it's still important to optimize your code for efficiency. Avoid unnecessary recompositions by ensuring that your composables only recompose when their state changes. Use remember or rememberUpdatedState strategically to control when composables should recompose. Additionally, be mindful of heavy computations or IO operations on the main thread, which can negatively impact the UI responsiveness.

10. Stay Up-to-Date with Jetpack Compose

Jetpack Compose is continuously evolving, with new features and improvements being introduced regularly. Stay up-to-date with the latest releases, documentation, and best practices. Explore the official Jetpack Compose samples and codelabs to learn about new patterns, libraries, and recommended practices.

By following these best practices, you can harness the full potential of Jetpack Compose and build maintainable, performant, and visually stunning Android applications. Remember to adapt these practices to suit the specific needs of your project and stay open to new techniques as the Jetpack Compose ecosystem evolves.

In addition to the Jetpack libraries provided by Google, there are several third-party libraries that can enhance your Jetpack Android projects. These libraries offer additional functionality, simplify common tasks, and integrate well with the Jetpack ecosystem. Here are some recommended libraries to consider:

1. Retrofit

Retrofit is a popular HTTP client library that simplifies network requests in your Android app. It integrates seamlessly with Jetpack and can be used in the data layer of Clean Architecture to handle API communication. Retrofit supports various request types, serialization, and error handling. Its declarative API makes it easy to define and consume RESTful APIs.

2. Dagger or Hilt

Dagger and Hilt are dependency injection frameworks that facilitate the management and injection of dependencies in your Android projects. These frameworks help achieve loose coupling and maintainable code by providing a clear way to define and resolve dependencies across different layers of Clean Architecture. Dagger is a more low-level, powerful framework, while Hilt is a more opinionated and streamlined version built on top of Dagger specifically for Android.

3. Timber

Timber is a flexible logging library that simplifies logging in your Android app. It offers an easy-to-use API for logging messages and provides various logging levels. Timber integrates well with the Android system, making it easy to capture and analyze logs during development and in production. It's particularly useful for debugging and troubleshooting your application.

4. Glide or Coil

Glide and Coil are image loading libraries that can help you efficiently load and display images in your Jetpack Android projects. These libraries offer features like caching, resizing, and handling image loading and placeholder states. They provide an abstraction layer over the complexities of image loading, enabling you to display images from various sources, including URLs and local storage, with ease.

5. Room

Room is a powerful ORM (Object Relational Mapping) library that simplifies database operations in Android. It provides an abstraction layer over SQLite and allows you to work with databases using plain Java or Kotlin objects. Room integrates well with LiveData and other Jetpack components, making it an excellent choice for managing local data storage in your Jetpack Android projects.

6. Material Design Components

Material Design Components (MDC) is a library that provides pre-built UI components following the Material Design guidelines. It offers a wide range of UI elements, including buttons, cards, text fields, and more. MDC integrates seamlessly with Jetpack Compose, allowing you to create visually appealing and consistent UIs with minimal effort. It also provides theming support to customize the appearance of your app.

7. Moshi or Gson or Jackson

Moshi, Gson, and Jackson are JSON parsing libraries that simplify the serialization and deserialization of JSON data in your Android app. They provide easy-to-use APIs for converting JSON strings into Kotlin or Java objects and vice versa. Moshi and Gson offer features like custom-type adapters, null handling, and field naming strategies, making them essential tools for working with JSON data in your Jetpack Android projects.

These are useful and recommended third-party libraries available for Jetpack Android projects. When selecting libraries, consider your project's specific requirements and evaluate the library's documentation, community support, and compatibility with Jetpack components.

Remember to include only the libraries that align with your project's needs, as adding too many dependencies can increase the app's size and complexity.

Organizing your Android project structure with Jetpack Compose plays a vital role in maintaining a clean and scalable codebase. By adopting a layered architecture approach and following the recommended directory structure, you can achieve better code modularity, testability, and maintainability. Remember that this structure serves as a starting point and can be customized to fit the unique requirements of your project. Consistency and adherence to good architectural practices are key to building robust and maintainable Jetpack Compose applications.

We hope this guide has provided you with valuable insights into organizing your Android project structure with Jetpack Compose and implementing Clean Architecture principles.
